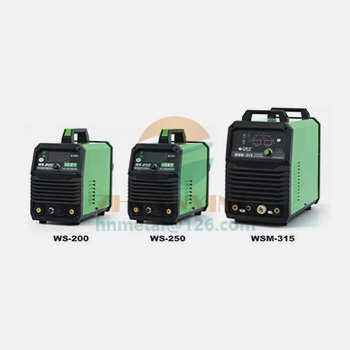

WS Tig Welding Machine
Tig-200 Tig-250 Tig-315 Tig-315ACDC Tig-500ACDC
Product features:
1. The fully digital micro processing technology and the high frequency inverter technology combination;

2. Breakdown self check function;

3. High frequency pressure arc, arc starting performance is good, when the welding electric arc stability;

4. Panel adopts intelligent design;

5. It can be widely used in petroleum, chemical industry, turbine, metallurgy, building, boiler, piping,etc;

6. Suitable for low carbon steel, cast iron, stainless steel, copper alloy, aluminum alloy, etc. All position welding.

Product Type	TIG/MMA-315
Rated input voltage / frequency	AC220V/380V±10% 50Hz
Rated input capacity	14.5KVA
Rated input current	22A
Rated load rate	60%
Output voltage (hand arc / arc)	81V/77V
DC Current  Welding current	5-315A
DC pulse  pak current	5-315A
DC pulse  background current	5-315A
DC pulse  pulse duty factor	1-100%
DC pulse  Pulse frequency	0.2-20Hz
Arc current	10-160A
Arc current income	5-315A
Current ramp time	0.1-10S
Current decay time	0.1-15S
Early intaketime	0.1-15S
Post-gas time	0.1-60S
Crater current operating mode	Two steps, four steps
TIG arc method	High frequency arcing
Welding current	5-315A
Thrust current	10-200A
Arc current	20-160A
Insulation class	H
Dimensions	515X275X465mm
Weight	21.3Kg
