NBC Mig Welding Machine
Applications:
Standard : GB CCC CE
E-mail:hnmetal@126.com
Product details
NBC Mig Welding Machine

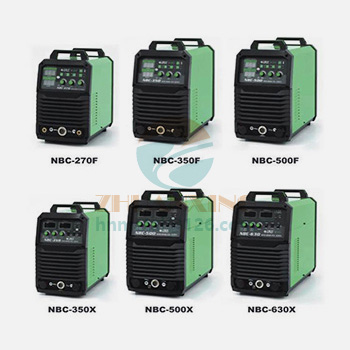

NBC-270 NBC-350 NBC-500
Product features:
1. In this paper, the whole bridge invert main circuit is adopted, and the whole machine is high reliability;
2. The superior voltage, current two waveform control circuit, the welding fly small, the weld is formed beautiful;
3. It is easy to operate, and it can be used to control cable for narrow and higher ground;
4. The noil digital table displays the voltage current, the human design, no tedious external welder specification setting;
5. The unique AFTT goes to the arc of the ball and the welder ends up in the wire end without any remaining balls;
6. It is equipped with the wire straightening structure of wire straightening, the silk performance is superior, and the stability of arc is guaranteed when the welding gun is overbent.
|
Product Type
|
NBC-270F | NBC-350F | NBC-500F |
|
Input Power Source
|
AC220/380V ±15% |
AC380V±15% | AC380V±15% |
|
Input Frequency
|
50/60 | 50/60 | 50/60 |
|
No-Load Voltage
|
65V | 65V | 65V |
|
Current Range
|
20-270A | 20-350A | 20-500A |
|
Axial Adjustment Range
|
0-100 | 0-100 | 0-100 |
|
Rated Duty Cycle
|
60% | 60% | 60% |
|
Load Loss
|
60W | 80W | 80W |
|
Effectiveness
|
85% | 85% | 85% |
|
Rower Factor
|
0.93 | 0.93 | 0.93 |
|
Dimensions
|
515X275X465 mm |
595X306X530 mm |
595X306X530 mm |
|
Weight
|
16.2Kg |
26.4Kg | 34.5Kg |
|
Product Type
|
NBC-350X | NBC-500X | NBC-630X |
|
Input Power Source
|
AC380V±15% |
AC380V±15% | AC380V±15% |
| Rated Input capacity | 14.4KVA | 25KVA | 36KVA |
| Input Current | 22A | 38A | 54A |
| Welding voltage adjustment range | 17-31V | 17-39V | 17-44V |
| Welding current adjustment range | 60-350A | 60-500A | 60-630A |
| Aplicable wire range | 0.8-1.2mm | 1.0-1.6mm |
1.0-2.0mm |
| Rated duty cycle | 60% | 60% | 60% |
| Full load efficiency | 89% | 89% | 89% |
| Shell protection grade | IP21S | IP21S | IP21S |
|
Dimensions
|
595X306X530 mm |
628X330X565 mm |
628X330X565 mm |
|
Weight
|
34.2Kg | 43Kg | 49.3Kg |
