ZX7 Welding Machine
Applications:
Standard : GB CCC CE
E-mail:hnmetal@126.com
Product details

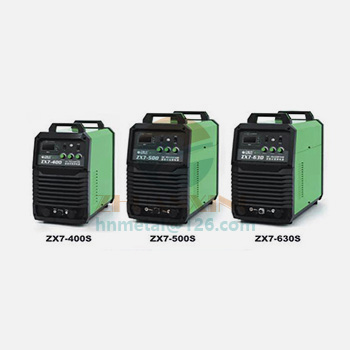

ZX7 MMA Welding Machine
ZX7-400S ZX7-500S ZX7-630S
Product features:
1. The reduction of copper iron in noil was significantly reduced, and the efficiency of the welding machine was improved;
2. The noil digital display head, the welding current can be accurately preset;
3. It is characterized by easy arc, small splash, stable current and good forming;
4. It has various protective functions, temperature protection, overcurrent protection, short circuit protection, etc. The reverse frequency is 20KHZ, small and light weight;
5. It has automatic compensation function of voltage fluctuation, strong resistance to the power grid and stable welding current;
6. The arc thrust can be adjusted with the length of welding cable to realize long distance welding;
7. It is widely used in welding of all kinds of acid alkaline welds.
|
Product Type
|
MMA-400S | MMA-500S | MMA-630S |
|
Input Power Source
|
AC380V±15% | AC380V±15% | AC380V±15% |
|
Rated Input Capacity
|
20.5KVA | 25KVA | 31.5KVA |
|
Input Current
|
32A | 38A | 47A |
|
No-Load Voltage
|
75V | 75V | 75V |
|
Duly Cycle
|
60% | 60% | 60% |
|
Full load efficiency
|
89% | 89% | 89% |
|
Power Factor
|
0.95 | 0.95 | 0.95 |
|
Shell protection grade
|
IP21S | IP21S | IP21S |
|
Cooling method
|
Air cooled | Air cooled | Air cooled |
|
Dimensions
|
595X306X530 mm |
628X330X565 mm |
628X330X565 mm |
|
Weight
|
30Kg | 38.6Kg | 44.8Kg |
